Deep Dive: Advanced Neuron Querying

This tutorial explores the powerful and flexible querying capabilities of CRANTpy. We’ll go beyond simple filters and dive into:

• Complex, multi-parameter queries

• Using regular expressions for flexible matching

• Inspecting available data to build your queries

• Analyzing populations of neurons returned from queries

Let’s get started by setting up our environment.

# Import CRANTpy and other necessary libraries
import crantpy as cp
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

# Set up logging to see progress
cp.set_logging_level("WARNING")  # Quieter for this tutorial

print("CRANTpy loaded successfully!")
print(f"Default dataset: {cp.CRANT_DEFAULT_DATASET}")

CRANTpy loaded successfully!
Default dataset: latest

1. Authentication Setup

First, ensure you are authenticated with the CAVE service.

# Generate and save authentication token (uncomment if first time)
# cp.generate_cave_token(save=True)

# Test connection
try:
    client = cp.get_cave_client()
    print(f"Successfully connected to datastack: {client.datastack_name}")
    print(f"Server: {client.server_address}")
except Exception as e:
    print(f"Connection failed: {e}")
    print("Please run: cp.generate_cave_token(save=True)")

Successfully connected to datastack: kronauer_ant
Server: https://proofreading.zetta.ai

2. Exploring Available Annotation Data

To build powerful queries, you first need to know what data you can filter on. Let’s inspect the available annotation fields and their values.

# Get all available annotation fields
available_fields = cp.NeuronCriteria.available_fields()
print(f"Available annotation fields ({len(available_fields)}):")
for field in sorted(available_fields):
    print(f"  - {field}")

Available annotation fields (25):
  - alternative_names
  - annotator_notes
  - cave_table
  - cell_class
  - cell_instance
  - cell_subtype
  - cell_type
  - date_proofread
  - flow
  - hemilineage
  - known_nt
  - known_nt_source
  - nerve
  - ngl_link
  - nucleus_id
  - proofread
  - proofreader_notes
  - region
  - root_id
  - side
  - status
  - super_class
  - tract
  - user_annotator
  - user_proofreader

# Get an overview of the entire dataset annotations
all_annotations = cp.get_all_seatable_annotations()
print(f"Total neurons in dataset: {len(all_annotations):,}")
print(f"Dataset shape: {all_annotations.shape}")
print("\nFirst few rows:")
display(all_annotations.head())

Total neurons in dataset: 6,166
Dataset shape: (6166, 30)

First few rows:

	root_id	root_id_processed	supervoxel_id	position	nucleus_id	nucleus_position	root_position	cave_table	proofread	status	...	cell_subtype	cell_instance	known_nt	known_nt_source	alternative_names	annotator_notes	user_annotator	user_proofreader	ngl_link	date_proofread
0	576460752700282748	None	74170512125421134	[32782, 30214, 1532]	72691394107456688	[37306, 31317, 1405]	[37306, 31317, 1405]	None	False	[DAMAGED, PARTIALLY_PROOFREAD, TRACING_ISSUE]	...	None	None	acetylcholine	Tanaka et al., 2012 (immuno, mALT, drosophila ...	None	None	[lindsey_lopes]	[lindsey_lopes]	https://spelunker.cave-explorer.org/#!middleau...	None
1	576460752681552812	None	74100212167609429	[32121, 31509, 1702]	72621025497478503	[36772, 28974, 1953]	[36772, 28974, 1953]	None	True	[BACKBONE_PROOFREAD]	...	None	None	acetylcholine	Tanaka et al., 2012 (immuno, mALT, drosophila ...	None	None	[lindsey_lopes]	[lindsey_lopes]	https://spelunker.cave-explorer.org/#!middleau...	None
2	576460752666303418	None	74169069687405059	[33220, 8787, 4046]	72620682436952978	[33727, 8389, 4054]	[33727, 8389, 4054]	None	False	[PARTIALLY_PROOFREAD, TRACING_ISSUE]	...	None	None	acetylcholine, sNPF	Barnstedt et al. 2016 (immuno, KCs, drosophila...	None	None	[lindsey_lopes]	[lindsey_lopes]	https://spelunker.cave-explorer.org/#!middleau...	None
3	576460752722405178	None	74100212167388307	[32442, 31693, 1618]	72621025497491534	[36266, 31490, 2021]	[36266, 31490, 2021]	None	False	[PARTIALLY_PROOFREAD, TRACING_ISSUE]	...	None	None	acetylcholine	Tanaka et al., 2012 (immuno, mALT, drosophila ...	None	None	[lindsey_lopes]	[lindsey_lopes]	https://spelunker.cave-explorer.org/#!middleau...	None
4	576460752773799604	None	74100280887219649	[32484, 32119, 1756]	72691394308791443	[37240, 29878, 2178]	[37240, 29878, 2178]	None	True	[BACKBONE_PROOFREAD]	...	None	None	acetylcholine	Tanaka et al., 2012 (immuno, mALT, drosophila ...	None	None	[lindsey_lopes]	[lindsey_lopes]	https://spelunker.cave-explorer.org/#!middleau...	None

5 rows × 30 columns

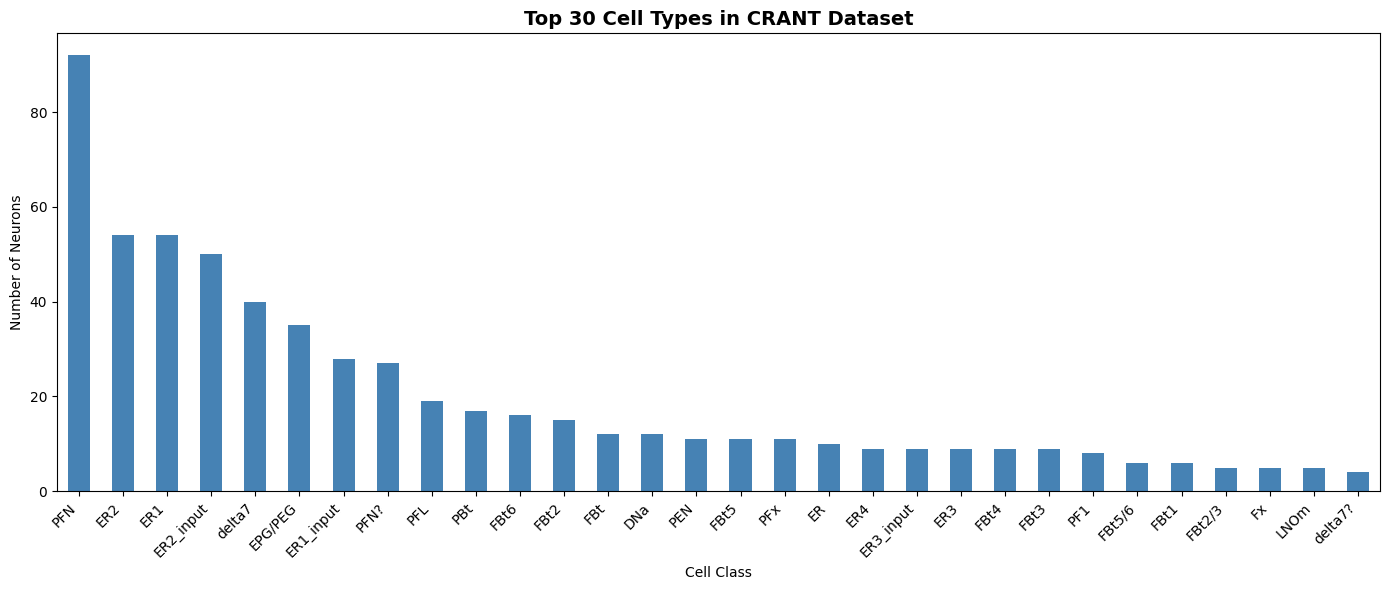

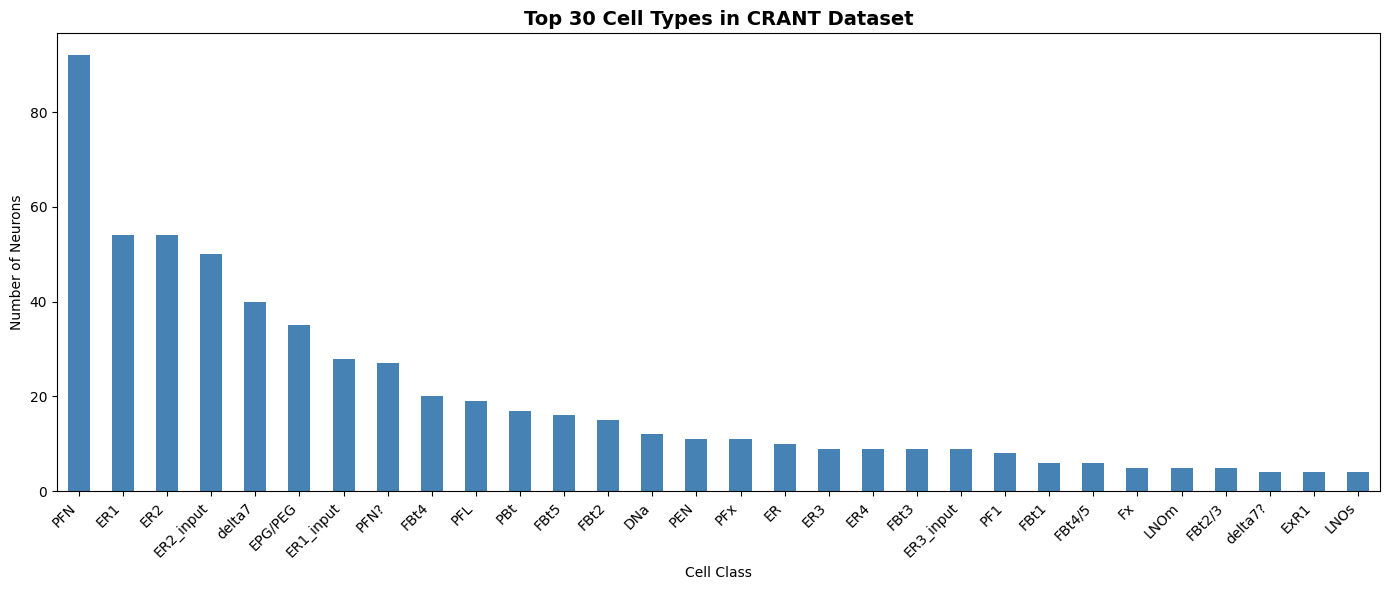

Exploring Data Distribution

Let’s visualize some of the key annotation fields to understand the dataset better.

# Explore the distribution of cell types
cell_type_counts = all_annotations['cell_type'].value_counts()
print("Top 30 annotated cell types:")
print(cell_type_counts.head(30))

# Visualize
plt.figure(figsize=(14, 6))
cell_type_counts.head(30).plot(kind='bar', color='steelblue')
plt.title('Top 30 Cell Types in CRANT Dataset', fontsize=14, fontweight='bold')
plt.xlabel('Cell Class')
plt.ylabel('Number of Neurons')
plt.xticks(rotation=45, ha='right')
plt.tight_layout()
plt.show()

Top 30 annotated cell types:
cell_type
PFN          92
ER2          54
ER1          54
ER2_input    50
delta7       40
EPG/PEG      35
ER1_input    28
PFN?         27
PFL          19
PBt          17
FBt6         16
FBt2         15
FBt          12
DNa          12
PEN          11
FBt5         11
PFx          11
ER           10
ER4           9
ER3_input     9
ER3           9
FBt4          9
FBt3          9
PF1           8
FBt5/6        6
FBt1          6
FBt2/3        5
Fx            5
LNOm          5
delta7?       4
Name: count, dtype: int64

3. Basic Querying with NeuronCriteria

The NeuronCriteria class is the main interface for filtering neurons. Let’s start with simple queries.

Simple Single-Criterion Queries

The most basic query is filtering by a single field.

# Query neurons by cell class
olfactory_projection_neurons = cp.NeuronCriteria(cell_class='olfactory_projection_neuron')
opn_ids = olfactory_projection_neurons.get_roots()
print(f"Found {len(opn_ids)} olfactory projection neurons")

# Query neurons by side
left_neurons = cp.NeuronCriteria(side='left')
left_ids = left_neurons.get_roots()
print(f"Found {len(left_ids)} left-side neurons")

# Query neurons by tract
malt_neurons = cp.NeuronCriteria(tract='mALT')
malt_ids = malt_neurons.get_roots()
print(f"Found {len(malt_ids)} neurons in mALT tract")

Found 107 olfactory projection neurons
Found 3648 left-side neurons
Found 2275 neurons in mALT tract

Multi-Criterion Queries (Logical AND)

You can combine multiple criteria - the query will return neurons matching all criteria (logical AND).

# Combine cell class and side
left_opn = cp.NeuronCriteria(
    cell_class='olfactory_projection_neuron',
    side='left'
)
left_opn_ids = left_opn.get_roots()
print(f"Found {len(left_opn_ids)} left olfactory projection neurons")

# Combine region, side, and proofread status
mb_left_proofread = cp.NeuronCriteria(
    region='MB',
    side='left',
    proofread=True
)
mb_left_proofread_ids = mb_left_proofread.get_roots()
print(f"Found {len(mb_left_proofread_ids)} proofread left mushroom body neurons")

Found 37 left olfactory projection neurons
Found 30 proofread left mushroom body neurons

4. Advanced Filtering Options

CRANTpy offers powerful filtering options for complex queries.

Using Regular Expressions

Regular expressions (regex=True) enable powerful pattern matching for finding related groups of neurons.

# Find all ExR subtypes using regex
ExR_subtypes = cp.NeuronCriteria(
    cell_type='ExR',  # Matches ExR_a, ExR_b, etc.
    regex=True
)
ExR_subtype_ids = ExR_subtypes.get_roots()
print(f"Found {len(ExR_subtype_ids)} ExR subtype neurons")

# Get their annotations to see the specific types
exR_annotations = cp.get_annotations(ExR_subtypes)
print("\nExR subtypes found:")
print(exR_annotations['cell_type'].value_counts())

# More complex regex: Find all tangential neurons (FBt or PBt)
all_tangential = cp.NeuronCriteria(
    cell_type='[FBt|PBt]',  # Matches FBt or PBt
    regex=True
)
all_tangential_ids = all_tangential.get_roots()
print(f"\nFound {len(all_tangential_ids)} tangential neurons (FBt/PBt)")

Found 6 ExR subtype neurons

2025-10-10 07:58:43 - WARNING - Failed to update 2 annotation root ID(s). These IDs may no longer exist.

ExR subtypes found:
cell_type
ExR1    4
ExR2    2
Name: count, dtype: int64

Found 450 tangential neurons (FBt/PBt)

Filtering with Lists: match_all Parameter

When filtering by a list of values on fields that contain lists (like status or region), the match_all parameter controls the matching behavior.

# match_all=False (default): neurons with ANY of the specified statuses
any_status = cp.NeuronCriteria(
    status=['BACKBONE_PROOFREAD', 'PRELIM_PROOFREAD'],
    match_all=False  # This is the default
)
any_status_ids = any_status.get_roots()
print(f"Neurons with ANY of the specified statuses: {len(any_status_ids)}")

# match_all=True: neurons with ALL of the specified statuses
all_statuses = cp.NeuronCriteria(
    status=['DAMAGED', 'TRACING_ISSUE'],
    match_all=True
)
try:
    all_statuses_ids = all_statuses.get_roots()
    print(f"Neurons with ALL of the specified statuses: {len(all_statuses_ids)}")
except Exception as e:
    print(f"Query returned: {e}")

# Practical example: neurons in multiple regions
multi_region = cp.NeuronCriteria(
    region=['MB', 'AL'],  # Neurons that innervate both regions
    match_all=True
)
try:
    multi_region_ids = multi_region.get_roots()
    print(f"\nNeurons in BOTH MB and AL: {len(multi_region_ids)}")
except Exception as e:
    print(f"\nQuery returned: {e}")

Neurons with ANY of the specified statuses: 715
Neurons with ALL of the specified statuses: 2

Neurons in BOTH MB and AL: 128

Substring Matching: exact Parameter

By default, queries match values exactly. Setting exact=False enables substring matching.

# exact=True (default): exact matching only
exact_match = cp.NeuronCriteria(
    cell_class='olfactory_projection_neuron',
    exact=True
)
exact_ids = exact_match.get_roots()
print(f"Exact match for 'olfactory_projection_neuron': {len(exact_ids)}")

# exact=False: substring matching
substring_match = cp.NeuronCriteria(
    cell_class='projection',  # Will match any cell_class containing 'projection'
    exact=False
)
substring_ids = substring_match.get_roots()
print(f"Substring match for 'projection': {len(substring_ids)}")

# See what was matched
substring_annotations = cp.get_annotations(substring_match)
print("\nCell classes matched (substring 'projection'):")
print(substring_annotations['cell_class'].value_counts())

Exact match for 'olfactory_projection_neuron': 107
Substring match for 'projection': 107

Cell classes matched (substring 'projection'):
cell_class
olfactory_projection_neuron    109
spiny_kenyon_cell                1
Name: count, dtype: int64

Cell classes matched (substring 'projection'):
cell_class
olfactory_projection_neuron    109
spiny_kenyon_cell                1
Name: count, dtype: int64

Case-Sensitive Matching

By default, string matching is case-insensitive. Use case=True for case-sensitive matching (only applies when regex=True).

# Case-insensitive (default)
case_insensitive = cp.NeuronCriteria(
    cell_type='exr',  # Will match ExR, exr, ExR_a, etc.
    regex=True,
    case=False  # This is the default
)
case_insensitive_ids = case_insensitive.get_roots()
print(f"Case-insensitive match for 'exr': {len(case_insensitive_ids)}")

# Case-sensitive
case_sensitive = cp.NeuronCriteria(
    cell_type='exr',  # Will only match exact case
    regex=True,
    case=True
)
try:
    case_sensitive_ids = case_sensitive.get_roots()
    print(f"Case-sensitive match for 'exr': {len(case_sensitive_ids)}")
except Exception as e:
    print(f"Case-sensitive match returned: {e}")

Case-insensitive match for 'exr': 6
Case-sensitive match returned: No neurons found matching the given criteria.

5. Working with Annotations

Beyond just getting root IDs, you can fetch full annotation data for neurons.

# Get annotations for a NeuronCriteria object
mb_neurons = cp.NeuronCriteria(region='MB')
mb_annotations = cp.get_annotations(mb_neurons)

print(f"Retrieved annotations for {len(mb_annotations)} MB neurons")
print(f"\nColumns available: {list(mb_annotations.columns)}")
print("\nFirst few rows:")
display(mb_annotations[['root_id', 'cell_class', 'cell_type', 'side', 'region']].head())

# Get annotations for specific root IDs
sample_ids = opn_ids[:5]
sample_annotations = cp.get_annotations(sample_ids)
print(f"\nAnnotations for {len(sample_annotations)} specific neurons:")
display(sample_annotations[['root_id', 'cell_class', 'cell_type', 'tract']])

Retrieved annotations for 323 MB neurons

Columns available: ['root_id', 'root_id_processed', 'supervoxel_id', 'position', 'nucleus_id', 'nucleus_position', 'root_position', 'cave_table', 'proofread', 'status', 'region', 'proofreader_notes', 'side', 'nerve', 'tract', 'hemilineage', 'flow', 'super_class', 'cell_class', 'cell_type', 'cell_subtype', 'cell_instance', 'known_nt', 'known_nt_source', 'alternative_names', 'annotator_notes', 'user_annotator', 'user_proofreader', 'ngl_link', 'date_proofread']

First few rows:

	root_id	cell_class	cell_type	side	region
0	576460752700282748	olfactory_projection_neuron	None	left	[LH, AL, MB]
1	576460752681552812	olfactory_projection_neuron	None	left	[LH, AL, MB]
2	576460752666303418	spiny_kenyon_cell	None	right	[MB]
3	576460752722405178	olfactory_projection_neuron	None	left	[LH, AL, MB]
4	576460752773799604	olfactory_projection_neuron	None	right	[LH, AL, MB]

Annotations for 10 specific neurons:

	root_id	cell_class	cell_type	tract
0	576460752700282748	olfactory_projection_neuron	None	mALT
1	576460752681552812	olfactory_projection_neuron	None	mALT
2	576460752722405178	olfactory_projection_neuron	None	mALT
3	576460752773799604	olfactory_projection_neuron	None	mALT
4	576460752656800770	olfactory_projection_neuron	None	lALT
5	576460752722405178	spiny_kenyon_cell	None	None
6	576460752681552812	None	None	mALT
7	576460752722405178	None	None	mALT
8	576460752773799604	None	None	mALT
9	576460752700282748	None	None	mALT

Automatic ID Updating

CRANTpy automatically handles segmentation edits through the update_ids parameter. When neurons are edited in the segmentation, their root IDs change. This can cause mismatches between your query IDs and annotation IDs.

# By default, both NeuronCriteria and get_annotations update IDs automatically

# Example 1: NeuronCriteria automatically updates returned IDs
nc = cp.NeuronCriteria(cell_class='olfactory_projection_neuron')
current_ids = nc.get_roots()  # These are the latest root IDs
print(f"NeuronCriteria returned {len(current_ids)} neurons with updated IDs")

# Example 2: get_annotations updates annotation IDs before matching
# This ensures that even if you have a newer root ID, it will match
# against the updated annotation IDs
sample_id = int(current_ids[0])  # Convert numpy int64 to Python int
annotations = cp.get_annotations(sample_id)  # update_ids=True by default
print(f"\nSuccessfully retrieved annotations for ID {sample_id}")
print(f"Cell class: {annotations.iloc[0]['cell_class']}")

# You can disable automatic updating if needed
nc_no_update = cp.NeuronCriteria(cell_class='olfactory_projection_neuron', update_ids=False)
old_style_ids = nc_no_update.get_roots()  # IDs as stored in annotations
print(f"\nWithout update_ids: {len(old_style_ids)} neurons")

# Similarly for get_annotations
annotations_no_update = cp.get_annotations(sample_id, update_ids=False)
print(f"Annotations retrieved without ID updating")

NeuronCriteria returned 107 neurons with updated IDs

Successfully retrieved annotations for ID 576460752700282748
Cell class: olfactory_projection_neuron

Without update_ids: 107 neurons
Annotations retrieved without ID updating

Why is this important?

When the segmentation is edited (e.g., neurons are merged or split), root IDs change. Without automatic updating:

• Your queries might use outdated IDs that no longer exist

• Annotations might contain old IDs that don’t match your current data

• You’d need to manually track and update IDs

With automatic updating enabled (the default):

• NeuronCriteria.get_roots() returns the latest root IDs

• get_annotations() updates annotation IDs before matching

• Everything stays synchronized automatically

• Per-ID caching makes this efficient

6. Checking Proofread Status

You can quickly check which neurons are proofread using the is_proofread function.

# Check proofread status for a list of neurons
sample_ids = opn_ids[:10]
proofread_status = cp.is_proofread(sample_ids)

print(f"Checking proofread status for {len(sample_ids)} neurons:")
for neuron_id, is_pr in zip(sample_ids, proofread_status):
    status = "✓ Proofread" if is_pr else "✗ Not proofread"
    print(f"  {neuron_id}: {status}")

print(f"\nSummary: {np.sum(proofread_status)}/{len(proofread_status)} are proofread")

# You can also check using NeuronCriteria
proofread_status_criteria = cp.is_proofread(olfactory_projection_neurons)
print(f"\nOf all {len(olfactory_projection_neurons)} OPNs, {np.sum(proofread_status_criteria)} are proofread")

Checking proofread status for 10 neurons:
  576460752700282748: ✗ Not proofread
  576460752681552812: ✓ Proofread
  576460752722405178: ✗ Not proofread
  576460752773799604: ✓ Proofread
  576460752656800770: ✓ Proofread
  576460752722298426: ✗ Not proofread
  576460752768215072: ✗ Not proofread
  576460752680204173: ✓ Proofread
  576460752728003009: ✓ Proofread
  576460752780951210: ✗ Not proofread

Summary: 5/10 are proofread

Of all 107 OPNs, 65 are proofread

7. NeuronCriteria as Iterable and Container

NeuronCriteria objects support Python’s iterator and container protocols, making them very convenient to use.

# Get length
print(f"Number of OPNs: {len(olfactory_projection_neurons)}")

# Iterate over root IDs
print("\nFirst 5 OPN root IDs (using iteration):")
for i, root_id in enumerate(olfactory_projection_neurons):
    if i >= 5:
        break
    print(f"  {root_id}")

# Check membership
sample_id = opn_ids[0]
is_member = sample_id in olfactory_projection_neurons
print(f"\nIs {sample_id} an OPN? {is_member}")

# Check a neuron that's not an OPN
non_opn_id = left_ids[0]  # A random left neuron
is_member = non_opn_id in olfactory_projection_neurons
print(f"Is {non_opn_id} an OPN? {is_member}")

Number of OPNs: 107

First 5 OPN root IDs (using iteration):
  576460752700282748
  576460752681552812
  576460752722405178
  576460752773799604
  576460752656800770

Is 576460752700282748 an OPN? True
Is 576460752700282748 an OPN? True

8. Performance and Caching

CRANTpy caches annotation data to improve performance. You can control this behavior.

import time

# First query - may take longer (fetching from Seatable)
start = time.time()
query1 = cp.NeuronCriteria(cell_class='olfactory_projection_neuron', clear_cache=True)
ids1 = query1.get_roots()
time1 = time.time() - start
print(f"First query (no cache): {time1:.3f} seconds")

# Second query - should be faster (using cached data)
start = time.time()
query2 = cp.NeuronCriteria(cell_class='olfactory_projection_neuron')
ids2 = query2.get_roots()
time2 = time.time() - start
print(f"Second query (cached): {time2:.3f} seconds")

# Force refresh from Seatable
start = time.time()
query3 = cp.NeuronCriteria(cell_class='olfactory_projection_neuron', clear_cache=True)
ids3 = query3.get_roots()
time3 = time.time() - start
print(f"Query with cache refresh: {time3:.3f} seconds")

First query (no cache): 2.984 seconds
Second query (cached): 0.006 seconds
Query with cache refresh: 1.749 seconds
Query with cache refresh: 1.749 seconds

9. Analyzing Query Results

Once you have a set of neurons, you can perform various analyses on their annotations.

# Analyze connectivity patterns by tract
tracts = all_annotations['tract'].dropna().unique()
print(f"Found {len(tracts)} tracts: {list(tracts)[:10]}...")  # Show first 10

# Analyze each tract
tract_analysis = []
for tract in tracts[:8]:  # Analyze first 8 tracts for demonstration
    tract_neurons = cp.NeuronCriteria(tract=tract)
    tract_ids = tract_neurons.get_roots()
    tract_annotations = cp.get_annotations(tract_neurons)

    # Count unique cell classes
    n_cell_classes = len(tract_annotations['cell_class'].unique())
    n_cell_types = len(tract_annotations['cell_type'].dropna().unique())

    # Count proofread neurons
    n_proofread = tract_annotations['proofread'].sum() if 'proofread' in tract_annotations.columns else 0

    tract_analysis.append({
        'tract': tract,
        'n_neurons': len(tract_ids),
        'n_cell_classes': n_cell_classes,
        'n_cell_types': n_cell_types,
        'n_proofread': n_proofread,
        'pct_proofread': f"{100 * n_proofread / len(tract_ids):.1f}%"
    })

tract_df = pd.DataFrame(tract_analysis)
print("\nTract analysis:")
display(tract_df)

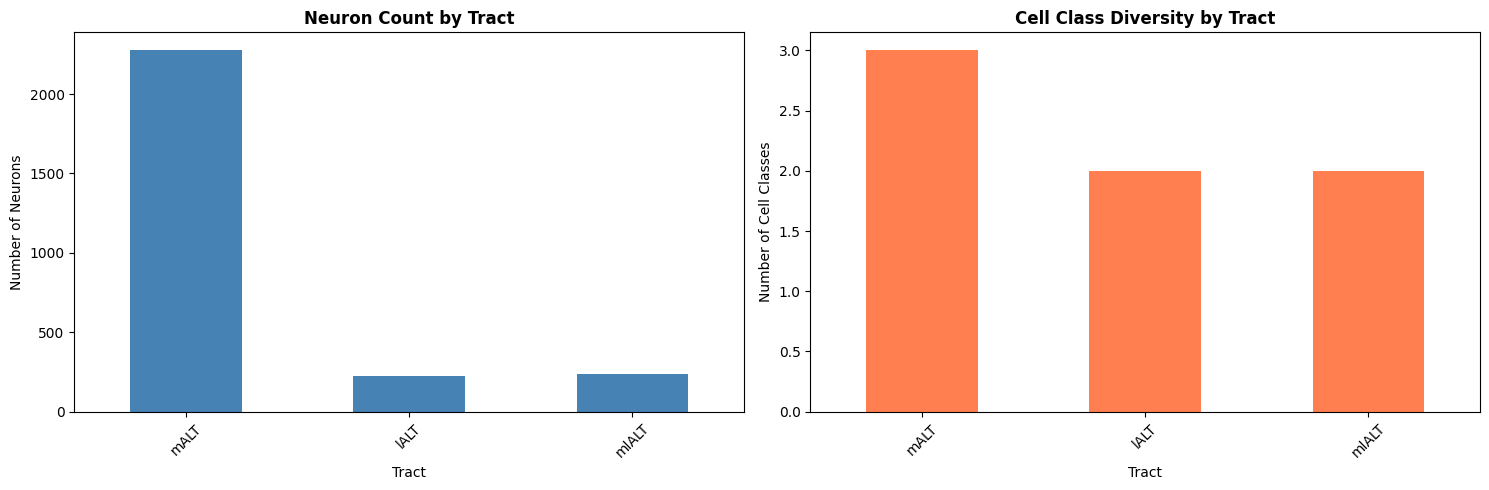

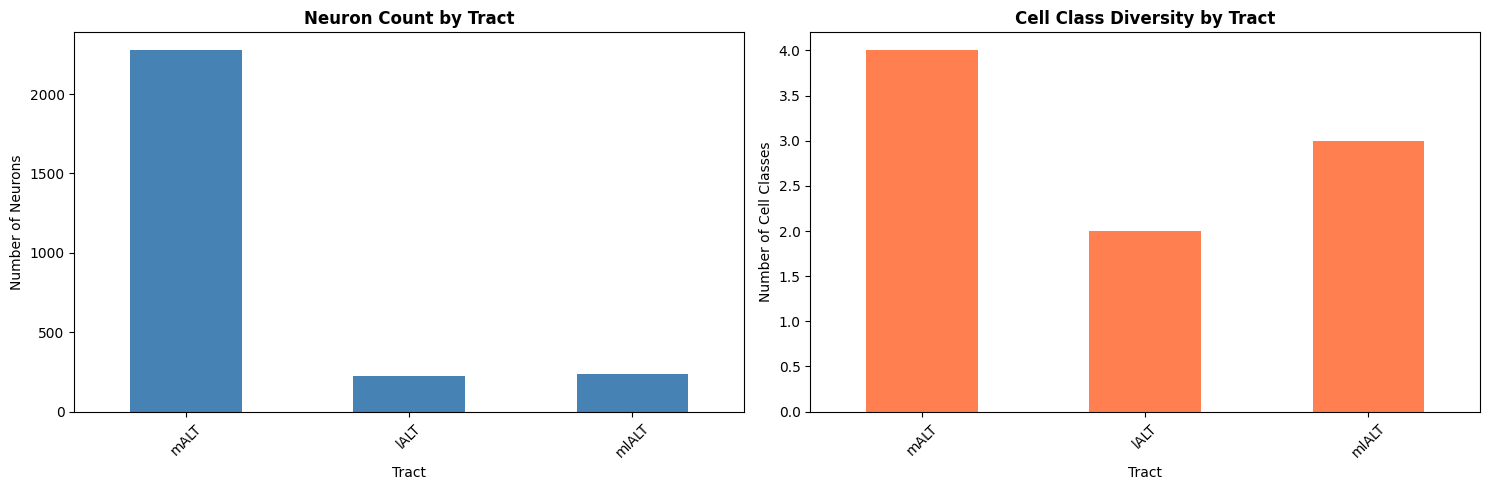

# Visualize tract composition
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 5))

tract_df.plot(x='tract', y='n_neurons', kind='bar', ax=ax1, color='steelblue', legend=False)
ax1.set_title('Neuron Count by Tract', fontsize=12, fontweight='bold')
ax1.set_xlabel('Tract')
ax1.set_ylabel('Number of Neurons')
ax1.tick_params(axis='x', rotation=45)

tract_df.plot(x='tract', y='n_cell_classes', kind='bar', ax=ax2, color='coral', legend=False)
ax2.set_title('Cell Class Diversity by Tract', fontsize=12, fontweight='bold')
ax2.set_xlabel('Tract')
ax2.set_ylabel('Number of Cell Classes')
ax2.tick_params(axis='x', rotation=45)

plt.tight_layout()
plt.show()

Found 3 tracts: ['mALT', 'lALT', 'mlALT']...

2025-10-10 08:02:04 - WARNING - Failed to update 2 annotation root ID(s). These IDs may no longer exist.

Tract analysis:

	tract	n_neurons	n_cell_classes	n_cell_types	n_proofread	pct_proofread
0	mALT	2275	4	0	41	1.8%
1	lALT	227	2	0	29	12.8%
2	mlALT	235	3	0	3	1.3%

Cross-Analysis: Comparing Populations

# Compare left vs right neurons
left_neurons = cp.NeuronCriteria(side='left')
right_neurons = cp.NeuronCriteria(side='right')

left_ann = cp.get_annotations(left_neurons)
right_ann = cp.get_annotations(right_neurons)

print(f"Left side: {len(left_ann)} neurons")
print(f"Right side: {len(right_ann)} neurons")

# Compare cell class distribution
print("\nTop 5 cell classes on left:")
print(left_ann['cell_class'].value_counts().head())

print("\nTop 5 cell classes on right:")
print(right_ann['cell_class'].value_counts().head())

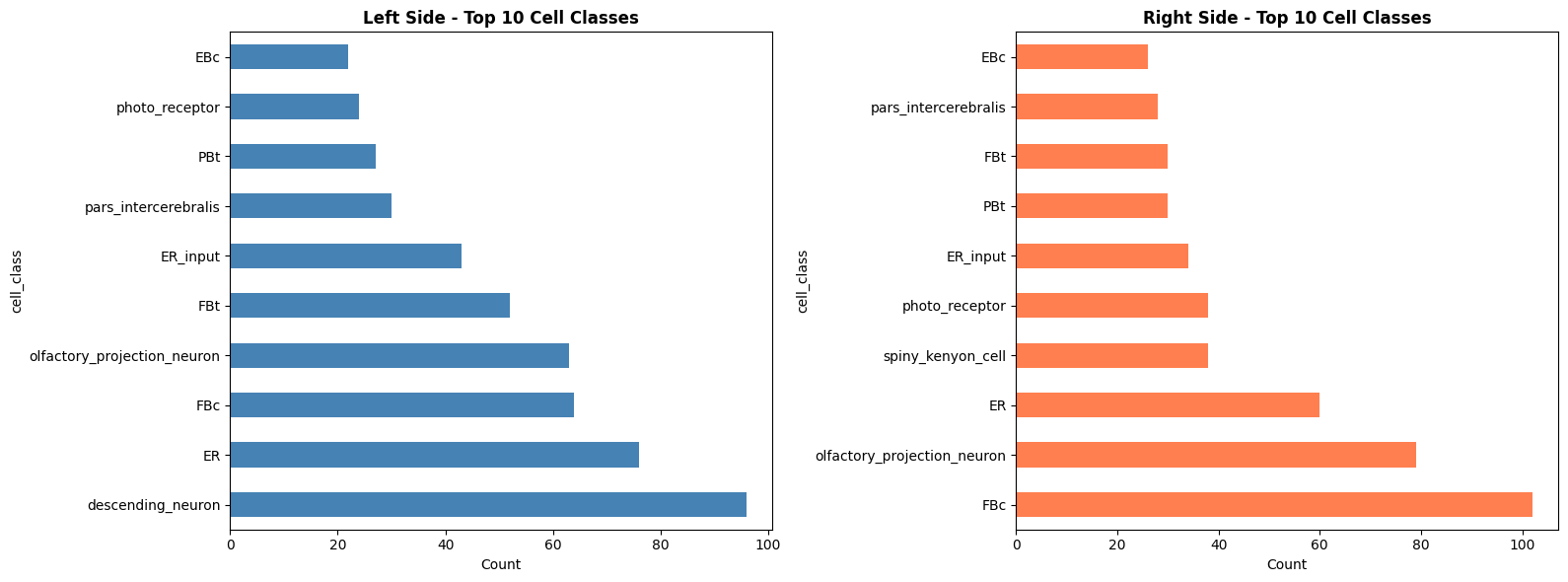

# Visualize comparison
fig, axes = plt.subplots(1, 2, figsize=(16, 6))

left_ann['cell_class'].value_counts().head(10).plot(kind='barh', ax=axes[0], color='steelblue')
axes[0].set_title('Left Side - Top 10 Cell Classes', fontsize=12, fontweight='bold')
axes[0].set_xlabel('Count')

right_ann['cell_class'].value_counts().head(10).plot(kind='barh', ax=axes[1], color='coral')
axes[1].set_title('Right Side - Top 10 Cell Classes', fontsize=12, fontweight='bold')
axes[1].set_xlabel('Count')

plt.tight_layout()
plt.show()

Left side: 3792 neurons
Right side: 1897 neurons

Top 5 cell classes on left:
cell_class
descending_neuron              96
ER                             76
FBc                            64
olfactory_projection_neuron    63
FBt                            52
Name: count, dtype: int64

Top 5 cell classes on right:
cell_class
FBc                            102
olfactory_projection_neuron     79
ER                              60
spiny_kenyon_cell               38
photo_receptor                  38
Name: count, dtype: int64

10. Best Practices and Tips

Here are some best practices for effective querying with CRANTpy.

1. Start Broad, Then Refine

Begin with broad queries and progressively add criteria to narrow down your results.

# Step 1: Broad query
step1 = cp.NeuronCriteria(region='CX')
print(f"Step 1 - All CX neurons: {len(step1)}")

# Step 2: Add side constraint
step2 = cp.NeuronCriteria(region='CX', side='left')
print(f"Step 2 - Left CX neurons: {len(step2)}")

# Step 3: Add cell class
step3 = cp.NeuronCriteria(region='CX', side='left', cell_class='ER')
print(f"Step 3 - Left CX ER neurons: {len(step3)}")

# Step 4: Add proofread constraint
step4 = cp.NeuronCriteria(region='CX', side='left', cell_class='ER', proofread=True)
print(f"Step 4 - Proofread left CX ER neurons: {len(step4)}")

Step 1 - All CX neurons: 656
Step 2 - Left CX neurons: 298
Step 3 - Left CX ER neurons: 70
Step 4 - Proofread left CX ER neurons: 59

2. Use verbose=True for Debugging

Enable verbose mode to see what’s happening during queries.

cp.set_logging_level("DEBUG") # this needs to be updated to see messages

# Without verbose (default)
query_quiet = cp.NeuronCriteria(cell_class='olfactory_projection_neuron', side='left')
ids_quiet = query_quiet.get_roots()

# With verbose
query_verbose = cp.NeuronCriteria(
    cell_class='olfactory_projection_neuron',
    side='left',
    verbose=True
)
ids_verbose = query_verbose.get_roots()

cp.set_logging_level("WARNING")

2025-10-10 08:02:05 - DEBUG - Generated cache key: latest for seatable_annotations
2025-10-10 08:02:05 - DEBUG - Cache hit for seatable_annotations with key: latest
2025-10-10 08:02:05 - DEBUG - Using cached seatable_annotations.
2025-10-10 08:02:05 - DEBUG - update_ids_cache: 37 cached, 0 uncached
2025-10-10 08:02:05 - DEBUG - Using fully cached results from update_ids_cache
2025-10-10 08:02:05 - DEBUG - Cache hit for seatable_annotations with key: latest
2025-10-10 08:02:05 - DEBUG - Using cached seatable_annotations.
2025-10-10 08:02:05 - DEBUG - update_ids_cache: 37 cached, 0 uncached
2025-10-10 08:02:05 - DEBUG - Using fully cached results from update_ids_cache
2025-10-10 08:02:05 - DEBUG - Generated cache key: latest for seatable_annotations
2025-10-10 08:02:05 - DEBUG - Cache hit for seatable_annotations with key: latest
2025-10-10 08:02:05 - DEBUG - Using cached seatable_annotations.
2025-10-10 08:02:05 - INFO - Found 37 neurons matching the given criteria.
2025-10-10 08:02:05 - DEBUG - update_ids_cache: 37 cached, 0 uncached
2025-10-10 08:02:05 - DEBUG - Using fully cached results from update_ids_cache
2025-10-10 08:02:05 - DEBUG - Generated cache key: latest for seatable_annotations
2025-10-10 08:02:05 - DEBUG - Cache hit for seatable_annotations with key: latest
2025-10-10 08:02:05 - DEBUG - Using cached seatable_annotations.
2025-10-10 08:02:05 - INFO - Found 37 neurons matching the given criteria.
2025-10-10 08:02:05 - DEBUG - update_ids_cache: 37 cached, 0 uncached
2025-10-10 08:02:05 - DEBUG - Using fully cached results from update_ids_cache

3. Inspect Available Values Before Querying

Check what values exist in your fields of interest before building queries.

# Check what tracts are available
print("Available tracts:")
print(all_annotations['tract'].dropna().unique())

# Check what statuses exist
print("\nAvailable statuses (flatten lists):")
status_lists = all_annotations['status'].dropna().tolist()
flat_statuses = set([status for sublist in status_lists for status in (sublist if isinstance(sublist, list) else [sublist])])
print(flat_statuses)

# Check cell types for a specific cell class
fbt_neurons_check = cp.NeuronCriteria(cell_class='FBt')
fbt_ann_check = cp.get_annotations(fbt_neurons_check)
print("\nCell types for mushroom_body_intrinsic_neuron:")
print(fbt_ann_check['cell_type'].value_counts())

Available tracts:
['mALT' 'lALT' 'mlALT']

Available statuses (flatten lists):
{'MISSING_SOMA', 'empty', 'NA', 'MERGE_ERROR', 'MERGE_MONSTER', 'DUPLICATED', 'TO_PROOFREAD', 'BACKBONE_PROOFREAD', 'PARTIALLY_PROOFREAD', 'DAMAGED', 'TRACING_ISSUE', 'THOROUGHLY_PROOFREAD'}

Cell types for mushroom_body_intrinsic_neuron:
cell_type
FBt6      16
FBt2      15
FBt       12
FBt5      11
FBt4       9
FBt3       9
FBt1       6
FBt5/6     6
FBt2/3     5
FBt1/2     2
Name: count, dtype: int64

Summary

In this comprehensive deep dive, you learned:

✅ NeuronCriteria fundamentals - Basic and multi-criterion queries
✅ Advanced filtering options - regex, match_all, exact, case parameters
✅ Working with annotations - Fetching and analyzing neuron metadata
✅ Proofread status checking - Identifying which neurons are proofread
✅ Iterator/container protocols - Using NeuronCriteria as iterable objects
✅ Performance optimization - Understanding and controlling caching behavior
✅ Population analysis - Comparing and analyzing query results
✅ Best practices - Strategies for efficient and effective querying

Key Takeaways

1. Combine criteria: Use multiple parameters to precisely target neuron populations

2. Leverage regex: Pattern matching is powerful for finding related neuron groups

3. Understand match_all: Control how lists are matched (ANY vs ALL)

4. Inspect first: Always explore available data before building complex queries

5. Use annotations: Don’t just get IDs - analyze the full metadata
