Deep Dive: Using EM Segmentation Data#
This comprehensive tutorial explores the powerful segmentation capabilities of CRANTpy using CAVE. We’ll cover:
Root and supervoxel conversions - Working with different segmentation levels
Location-based queries - Finding segmentation at specific coordinates
ID updates and validation - Keeping root IDs current
Neuron mapping - Connecting spatial data to segmentation
Voxel operations - Working with voxel-level data
Temporal analysis - Understanding segmentation history
Spatial corrections - Snapping coordinates to segmentation
These tools are essential for working with dynamic segmentation data in CAVE/ChunkedGraph systems.
Let’s get started by setting up our environment.
# Import CRANTpy and other necessary libraries
import crantpy as cp
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import navis
# Set up logging to see progress
cp.set_logging_level("WARNING") # Quieter for this tutorial
print("CRANTpy loaded successfully!")
print(f"Default dataset: {cp.CRANT_DEFAULT_DATASET}")
CRANTpy loaded successfully!
Default dataset: latest
1. Authentication Setup#
Before we can access the data, we need to authenticate with the CAVE service. This is typically a one-time setup.
# Generate and save authentication token (uncomment if first time)
# cp.generate_cave_token(save=True)
# Test connection
try:
client = cp.get_cave_client()
print(f"Successfully connected to datastack: {client.datastack_name}")
print(f"Server: {client.server_address}")
except Exception as e:
print(f"Connection failed: {e}")
print("Please run: cp.generate_cave_token(save=True)")
Successfully connected to datastack: kronauer_ant
Server: https://proofreading.zetta.ai
2. Root IDs and Supervoxels#
CAVE segmentation has a hierarchical structure:
Supervoxels - The smallest atomic units (never change)
L2 chunks - Groups of supervoxels
Root IDs - The top-level segments that represent neurons (can change with edits)
Understanding this hierarchy is crucial for working with dynamic segmentation.
Converting Root IDs to Supervoxels#
Supervoxels are stable - they never change even when neurons are edited. This makes them useful for tracking neurons over time.
# Get some example neurons
example_neurons = cp.NeuronCriteria(cell_class='olfactory_projection_neuron', proofread=True)
example_ids = example_neurons.get_roots()[:3] # Get first 3
print(f"Example root IDs: {example_ids}")
# Convert to supervoxels
sv_dict = cp.roots_to_supervoxels(example_ids)
print(f"Supervoxel breakdown:")
for root_id, supervoxels in sv_dict.items():
print(f" Root {root_id}: {len(supervoxels):,} supervoxels")
print(f" First 5: {supervoxels[:5]}")
print()
Example root IDs: ['576460752681552812' '576460752773799604' '576460752656800770']
Supervoxel breakdown:
Root 576460752656800770: 155,486 supervoxels
First 5: [74873375269027774 74873375268949798 74873375268996643 74873375268993836
74873375268949820]
Root 576460752681552812: 100,119 supervoxels
First 5: [74310013535161003 74310013535166331 74310013535158359 74310013535158357
74310013535158351]
Root 576460752773799604: 115,050 supervoxels
First 5: [74239507016850136 74239507016847407 74239507016839180 74239507016836277
74239507016836287]
Converting Supervoxels to Root IDs#
You can also go the other direction - from supervoxels to root IDs. This is useful for finding which neuron a supervoxel belongs to.
print(f"Starting root ID: {int(example_ids[0])}")
# Take some supervoxels from our first neuron
sample_supervoxels = sv_dict[int(example_ids[0])][:10]
print(f"\nSample supervoxels: {sample_supervoxels}")
# Convert back to root IDs
roots_from_sv = cp.supervoxels_to_roots(sample_supervoxels)
print(f"\nRoot IDs from supervoxels: {roots_from_sv}")
print(f"All belong to same root? {np.all(roots_from_sv == int(example_ids[0]))}")
# You can also query at a specific time
print("\n--- Time-based queries ---")
roots_current = cp.supervoxels_to_roots(sample_supervoxels, timestamp="mat")
print(f"Current root IDs: {np.unique(roots_current)}")
Starting root ID: 576460752681552812
Sample supervoxels: [74310013535161003 74310013535166331 74310013535158359 74310013535158357
74310013535158351 74310013535155583 74239575668933333 74239575668922938
74239575668839596 74239575668689743]
Root IDs from supervoxels: [576460752681552812 576460752681552812 576460752681552812
576460752681552812 576460752681552812 576460752681552812
576460752681552812 576460752681552812 576460752681552812
576460752681552812]
All belong to same root? True
--- Time-based queries ---
Current root IDs: [576460752681552812]
3. Location-Based Segmentation Queries#
One of the most useful operations is finding which segment exists at a specific x/y/z location.
Finding Supervoxels at Locations#
Get the supervoxel ID at specific coordinates.
# first lets get the location of a random l2 node from each of our example neurons
locations = []
for i in range(len(example_ids)):
skel = cp.get_l2_skeleton(example_ids)
# pick a random index from the node list
index = np.random.choice(skel.nodes.index)
# get the location of the l2 node and
locations.append(skel.nodes.loc[index,['x','y','z']].values)
locations = np.array(locations)
print(f"Querying {len(locations)} locations...")
# Get supervoxel IDs at these locations
supervoxels_at_locs = cp.locs_to_supervoxels(
locations,
coordinates="nm",
mip=0 # Highest resolution
)
print(f"\nSupervoxel IDs at locations:")
for i, (loc, sv_id) in enumerate(zip(locations, supervoxels_at_locs)):
print(f" Location {i+1} {loc}: supervoxel {sv_id}")
# You can also use DataFrames
loc_df = pd.DataFrame(locations, columns=['x', 'y', 'z'])
supervoxels_df = cp.locs_to_supervoxels(loc_df, coordinates="nm")
loc_df['supervoxel_id'] = supervoxels_df
print("\nLocations DataFrame:")
display(loc_df)
Querying 3 locations...
Supervoxel IDs at locations:
Location 1 [np.float64(331200.0) np.float64(93376.0) np.float64(112812.0)]: supervoxel 74732225463459004
Location 2 [np.float64(305488.0) np.float64(107744.0) np.float64(186312.0)]: supervoxel 74521257139550053
Location 3 [np.float64(254752.0) np.float64(236672.0) np.float64(75222.0)]: supervoxel 74100074728972648
Locations DataFrame:
| x | y | z | supervoxel_id | |
|---|---|---|---|---|
| 0 | 331200.0 | 93376.0 | 112812.0 | 74732225463459004 |
| 1 | 305488.0 | 107744.0 | 186312.0 | 74521257139550053 |
| 2 | 254752.0 | 236672.0 | 75222.0 | 74100074728972648 |
Finding Root IDs (Segments) at Locations#
More commonly, you want to know which neuron (root ID) is at a location.
# Get root IDs at the same locations
root_ids_at_locs = cp.locs_to_segments(
locations,
coordinates="nm",
timestamp="mat" # Use latest materialization
)
print(f"Root IDs at locations:")
for i, (loc, root_id) in enumerate(zip(locations, root_ids_at_locs)):
print(f" Location {i+1} {loc}: root ID {root_id}")
# Check if any locations hit the same neuron
unique_roots = np.unique(root_ids_at_locs[root_ids_at_locs != 0])
print(f"\nFound {len(unique_roots)} unique neurons at these locations")
# Get annotations for these neurons
if len(unique_roots) > 0:
annotations = cp.get_annotations(unique_roots)
print("\nNeurons found at locations:")
display(annotations[['root_id', 'cell_class', 'cell_type', 'side']].head(unique_roots.size))
Root IDs at locations:
Location 1 [np.float64(331200.0) np.float64(93376.0) np.float64(112812.0)]: root ID 576460752681552812
Location 2 [np.float64(305488.0) np.float64(107744.0) np.float64(186312.0)]: root ID 576460752656800770
Location 3 [np.float64(254752.0) np.float64(236672.0) np.float64(75222.0)]: root ID 576460752681552812
Found 2 unique neurons at these locations
Neurons found at locations:
| root_id | cell_class | cell_type | side | |
|---|---|---|---|---|
| 1 | 576460752681552812 | olfactory_projection_neuron | None | left |
| 5 | 576460752656800770 | olfactory_projection_neuron | None | right |
4. Updating and Validating Root IDs#
Root IDs can become outdated as neurons are edited (merged/split). CRANTpy provides tools to check and update IDs.
Validating Root IDs#
Check if root IDs are valid and current.
# Check if root IDs are valid
test_ids = example_ids[:5]
print(f"Testing {len(test_ids)} root IDs...")
# Check validity
is_valid = cp.is_valid_root(test_ids)
print(f"\nValidity check:")
for root_id, valid in zip(test_ids, is_valid):
status = "✓ Valid" if valid else "✗ Invalid"
print(f" {root_id}: {status}")
# Check if they're the latest version
is_latest = cp.is_latest_roots(test_ids)
print(f"\nLatest check:")
for root_id, latest in zip(test_ids, is_latest):
status = "✓ Current" if latest else "✗ Outdated"
print(f" {root_id}: {status}")
# Summary
print(f"\nSummary: {np.sum(is_valid)}/{len(test_ids)} valid, {np.sum(is_latest)}/{len(test_ids)} current")
Testing 3 root IDs...
Validity check:
576460752681552812: ✓ Valid
576460752773799604: ✓ Valid
576460752656800770: ✓ Valid
Latest check:
576460752681552812: ✓ Current
576460752773799604: ✓ Current
576460752656800770: ✓ Current
Summary: 3/3 valid, 3/3 current
Updating Outdated Root IDs#
If you have outdated root IDs, you can update them to the current version.
# Update root IDs to latest version
update_result = cp.update_ids(test_ids, progress=True)
print("Update results:")
display(update_result)
# Check which IDs changed
changed = update_result[update_result['changed']]
if len(changed) > 0:
print(f"\n{len(changed)} IDs were updated:")
display(changed)
else:
print("\n✓ All IDs were already current!")
# Update with supervoxels (much faster if you have them)
print("\n--- Using supervoxels for faster updates ---")
# If you have supervoxels saved from earlier
if len(sv_dict) > 0:
# Get the first root from sv_dict
first_root = list(sv_dict.keys())[0]
# Get first supervoxel and ensure it's a Python int
# sv_dict[root_id] returns an array of supervoxels
first_sv_array = sv_dict[first_root]
if len(first_sv_array) > 0:
first_sv = int(first_sv_array[0])
print(f"Testing with root ID: {first_root}, supervoxel: {first_sv}")
try:
update_with_sv = cp.update_ids(
[int(first_root)], # Ensure root is also int
supervoxels=[first_sv],
progress=False
)
print("\nUpdate with supervoxel:")
display(update_with_sv)
except Exception as e:
print(f"\nError during update with supervoxel: {e}")
else:
print("No supervoxels found for first root")
else:
print("No supervoxels available in sv_dict")
2025-10-04 16:11:23 - WARNING - Multiple supervoxel IDs found for 130 root IDs. Using first occurrence for each.
Update results:
| old_id | new_id | confidence | changed | |
|---|---|---|---|---|
| 0 | 576460752681552812 | 576460752681552812 | 1.0 | False |
| 1 | 576460752773799604 | 576460752773799604 | 1.0 | False |
| 2 | 576460752656800770 | 576460752656800770 | 1.0 | False |
✓ All IDs were already current!
--- Using supervoxels for faster updates ---
Testing with root ID: 576460752656800770, supervoxel: 74873375269027774
Update with supervoxel:
| old_id | new_id | confidence | changed | |
|---|---|---|---|---|
| 0 | 576460752656800770 | 576460752656800770 | 1.0 | False |
5. Mapping Neurons to Segmentation#
If you have neuron reconstructions (skeletons), you can find which root IDs they overlap with.
Finding Overlapping Segments#
This is useful for:
Validating that a skeleton matches the expected segmentation
Finding which segments a tracing overlaps with
Quality control of reconstructions
# For this example, we'll create a simple synthetic neuron
# In practice, you would load your actual neuron data
center_location = locations[0] # Use the first location from earlier
spread = 2000 # Spread of the synthetic neuron
# Create a simple TreeNeuron with nodes in your space
nodes_data = pd.DataFrame({
'node_id': range(20),
'x': np.linspace(center_location[0] - spread, center_location[0] + spread, 20),
'y': np.linspace(center_location[1] - spread, center_location[1] + spread, 20),
'z': np.linspace(center_location[2] - spread, center_location[2] + spread, 20),
'parent_id': [-1] + list(range(19))
})
test_neuron = navis.TreeNeuron(nodes_data, units='nm')
print(f"Created test neuron with {len(test_neuron.nodes)} nodes")
# Find which segments overlap with this neuron
overlap_summary = cp.neuron_to_segments(
test_neuron,
short=True, # Just get top match
coordinates="nm"
)
print("\nBest matching segment:")
display(overlap_summary)
# Get full overlap matrix
overlap_matrix = cp.neuron_to_segments(
test_neuron,
short=False,
coordinates="nm"
)
print("\nFull overlap matrix:")
print(f"Shape: {overlap_matrix.shape}")
display(overlap_matrix)
Created test neuron with 20 nodes
Best matching segment:
| id | match | confidence | |
|---|---|---|---|
| 0 | 6a033bea-6948-4e10-9229-431c8f5e7a22 | 576460752681552812 | 0.1 |
Full overlap matrix:
Shape: (13, 1)
| id | 6a033bea-6948-4e10-9229-431c8f5e7a22 |
|---|---|
| root_id | |
| 576460752502203165 | 1 |
| 576460752502255389 | 1 |
| 576460752551876313 | 1 |
| 576460752552099545 | 1 |
| 576460752552427737 | 1 |
| 576460752642804358 | 1 |
| 576460752679586871 | 3 |
| 576460752681552812 | 5 |
| 576460752693418619 | 2 |
| 576460752699284028 | 1 |
| 576460752717903902 | 1 |
| 576460752743326756 | 1 |
| 576460752759576234 | 1 |
6. Segmentation Cutouts#
You can extract a 3D volume of segmentation data in a bounding box.
Extracting a Volume of Segmentation#
This is useful for:
Analyzing local connectivity
Visualizing segmentation in 3D
Finding all segments in a region
# Define a small bounding box (in nanometers)
# Format: [[xmin, xmax], [ymin, ymax], [zmin, zmax]]
# create a box around the center_location
bbox = np.array([
[center_location[0] - 2000, center_location[0] + 2000],
[center_location[1] - 2000, center_location[1] + 2000],
[center_location[2] - 100, center_location[2] + 100]
])
print(f"Fetching segmentation cutout...")
print(f"Bounding box (nm):")
print(f" X: {bbox[0]}")
print(f" Y: {bbox[1]}")
print(f" Z: {bbox[2]}")
# Get the cutout with root IDs
cutout, resolution, offset = cp.get_segmentation_cutout(
bbox,
root_ids=True, # Get root IDs (not supervoxels)
mip=1, # Lower resolution for faster fetching
coordinates="nm"
)
print(f"\nCutout info:")
print(f" Shape: {cutout.shape}")
print(f" Resolution: {resolution} nm/voxel")
print(f" Offset: {offset} nm")
# Find unique segments in this volume
unique_segments = np.unique(cutout)
unique_segments = unique_segments[unique_segments != 0] # Remove background
print(f"\nFound {len(unique_segments)} unique segments in this volume")
print(f"Segment IDs: {unique_segments[:10]}...") # Show first 10
# map the values to a contiguous range for better visualization
if len(unique_segments) > 0:
segment_map = {seg_id: i+1 for i, seg_id in enumerate(unique_segments)}
vectorized_map = np.vectorize(lambda x: segment_map.get(x, 0))
cutout = vectorized_map(cutout)

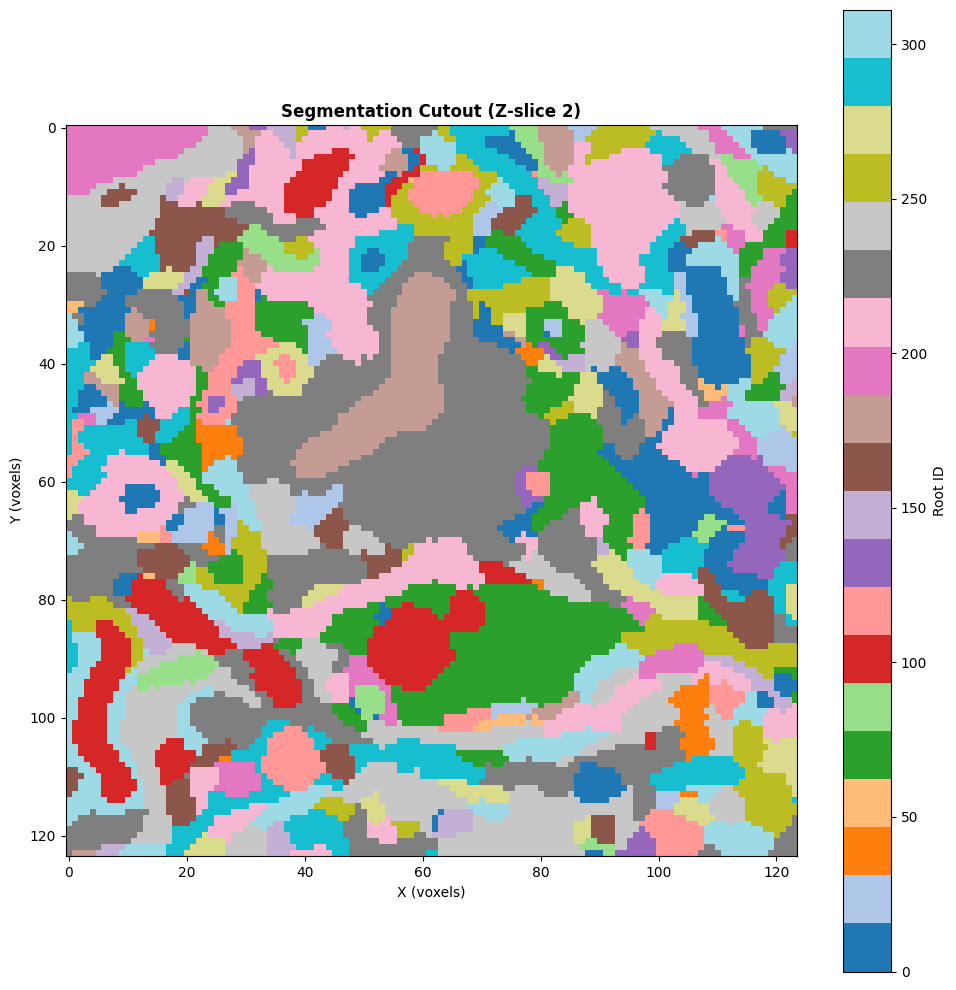

# Visualize a slice
if cutout.shape[2] > 0:
mid_z = cutout.shape[2] // 2
plt.figure(figsize=(10, 10))
plt.imshow(cutout[:, :, mid_z].T, cmap='tab20', interpolation='nearest')
plt.title(f'Segmentation Cutout (Z-slice {mid_z})', fontsize=12, fontweight='bold')
plt.xlabel('X (voxels)')
plt.ylabel('Y (voxels)')
plt.colorbar(label='Root ID')
plt.tight_layout()
plt.show()
Fetching segmentation cutout...
Bounding box (nm):
X: [329200. 333200.]
Y: [91376. 95376.]
Z: [112712. 112912.]
Cutout info:
Shape: (124, 124, 4)
Resolution: [32 32 42] nm/voxel
Offset: [329216 91392 112728] nm
Found 311 unique segments in this volume
Segment IDs: [576460752499537597 576460752502187549 576460752502203933
576460752502220317 576460752502236445 576460752502254877
576460752502268701 576460752502268957 576460752502275869
576460752502276893]...
7. Voxel-Level Operations#
Work with individual voxels that make up a neuron.
Getting All Voxels for a Neuron#
This retrieves all voxel coordinates that belong to a specific root ID within a specified region.
⚠️ Important: CloudVolume Coverage and Resolution
When working with voxel-level data, keep in mind:
Limited Spatial Coverage: CloudVolume contains only a subset (~360 x 344 x 257 µm) of the full CAVE dataset
Resolution Mismatch: CloudVolume’s highest resolution (MIP 0) is 16x16x42 nm/voxel, which is 2x coarser than CAVE’s base resolution (8x8x42 nm/voxel)
Coordinate Systems: CAVE uses nanometers, CloudVolume uses voxels at the current MIP level
Best Practices:
Always provide explicit bounds within CloudVolume coverage to avoid errors
Use small regions (< 10 µm) for voxel queries - large regions can be slow
Test bounds first using
get_segmentation_cutoutbefore fetching voxelsFor full neurons: Use L2 skeletons (
get_l2_skeleton) or meshes (get_mesh) instead of voxelsChoose appropriate MIP: Use MIP 1 for faster queries when precise resolution isn’t critical
# Get voxels for one of our example neurons
target_id = example_ids[0]
print(f"Fetching voxels for root ID: {target_id}")
# Define a small region around a known location within CloudVolume coverage
# Using center_location from earlier (which we know is within bounds)
bounds = np.array([
[center_location[0] - 2000, center_location[0] + 2000], # 4 µm window in X
[center_location[1] - 2000, center_location[1] + 2000], # 4 µm window in Y
[center_location[2] - 500, center_location[2] + 500] # 1 µm window in Z
])
print(f"\nBounds (in nm):")
print(f" X: [{bounds[0,0]:.0f}, {bounds[0,1]:.0f}]")
print(f" Y: [{bounds[1,0]:.0f}, {bounds[1,1]:.0f}]")
print(f" Z: [{bounds[2,0]:.0f}, {bounds[2,1]:.0f}]")
# Method 1: Get voxels without supervoxel mapping (faster)
print("\n--- Getting voxels (without supervoxel mapping) ---")
voxels = cp.get_voxels(
target_id,
mip=1, # Lower resolution for speed
bounds=bounds,
use_l2_chunks=False, # Use cutout method
sv_map=False, # Don't map to supervoxels
progress=True
)
if len(voxels) > 0:
print(f"\n✓ Retrieved {len(voxels):,} voxels")
print(f" Voxel ranges:")
print(f" X: [{voxels[:, 0].min()}, {voxels[:, 0].max()}]")
print(f" Y: [{voxels[:, 1].min()}, {voxels[:, 1].max()}]")
print(f" Z: [{voxels[:, 2].min()}, {voxels[:, 2].max()}]")
# Method 2: Get voxels WITH supervoxel mapping
print("\n--- Getting voxels (with supervoxel mapping) ---")
voxels_sv, sv_ids = cp.get_voxels(
target_id,
mip=1,
bounds=bounds,
use_l2_chunks=False,
sv_map=True, # Map each voxel to its supervoxel ID
progress=True
)
print(f"\n✓ Retrieved {len(voxels_sv):,} voxels")
print(f" Number of unique supervoxels: {len(np.unique(sv_ids)):,}")
print(f" Sample supervoxel IDs: {np.unique(sv_ids)[:5]}")
else:
print("\n⚠️ No voxels found in this region")
print(" This neuron may not have coverage in CloudVolume at this location")
Fetching voxels for root ID: 576460752681552812
Bounds (in nm):
X: [329200, 333200]
Y: [91376, 95376]
Z: [112312, 113312]
--- Getting voxels (without supervoxel mapping) ---
✓ Retrieved 22,377 voxels
Voxel ranges:
X: [10314, 10400]
Y: [2856, 2957]
Z: [2674, 2697]
--- Getting voxels (with supervoxel mapping) ---
✓ Retrieved 22,377 voxels
Number of unique supervoxels: 457
Sample supervoxel IDs: [74732225463411215 74732225463419220 74732225463419226 74732225463419260
74732225463421800]
8. Spatial Coordinate Correction#
Sometimes your coordinates might not exactly hit the neuron you expect. You can “snap” them to the nearest voxel with the correct ID.
Snapping Coordinates to Segmentation#
This is useful for:
Correcting slightly misaligned annotations
Ensuring synapses are on the correct neuron
Quality control of coordinate data
# Demonstration of snap_to_id functionality
# Note: This function requires CloudVolume coverage at the target locations
target_id = example_ids[0]
print(f"Target neuron: {target_id}")
# Create test locations near a region we know has data
# Make larger offsets to simulate imprecise annotations
test_locs = np.array([
center_location + np.array([-500, -500, 0]),
center_location + np.array([-500, 500, 0]),
center_location + np.array([500, -500, 0])
], dtype=float)
print(f"\nTest locations (with larger offsets to show snapping):")
for i, loc in enumerate(test_locs):
print(f" Location {i+1}: {loc}")
# Check what segments these locations currently hit
print(f"\nChecking current segmentation:")
current_segments = cp.locs_to_segments(test_locs, coordinates="nm")
# Find which segment is at the center location (our target)
target_segment = cp.locs_to_segments([center_location], coordinates="nm")[0]
print(f"\nTarget segment at center: {target_segment}")
# Show what we got at test locations
for i, seg in enumerate(current_segments):
match = "✓" if seg == target_segment else "✗"
print(f" Location {i+1}: segment {seg} {match}")
# Try to snap to the target segment
print(f"\nAttempting to snap all locations to segment: {target_segment}")
snapped_locs = cp.snap_to_id(
test_locs,
id=target_segment,
search_radius=500, # 500nm search radius
coordinates="nm",
verbose=True
)
# Verify
snapped_segments = cp.locs_to_segments(snapped_locs, coordinates="nm")
matches = snapped_segments == target_segment
print(f"\n✓ After snapping: {np.sum(matches)}/{len(snapped_locs)} on target segment")
# Calculate movement
movement = np.linalg.norm(snapped_locs - test_locs, axis=1)
successful = movement > 0
if np.sum(successful) > 0:
print(f"\nMovement statistics:")
print(f" Successfully snapped: {np.sum(successful)}/{len(movement)}")
print(f" Mean movement: {np.mean(movement[successful]):.2f} nm")
print(f" Max movement: {np.max(movement):.2f} nm")
print(f" Min movement: {np.min(movement[successful]):.2f} nm")
else:
print("\nNo locations needed snapping (all already correct)")
print("\n💡 snap_to_id is useful for:")
print(" - Correcting manually annotated synapse locations")
print(" - Fixing coordinates from image registration")
print(" - Quality control of spatial annotations")
Target neuron: 576460752681552812
Test locations (with larger offsets to show snapping):
Location 1: [330700. 92876. 112812.]
Location 2: [330700. 93876. 112812.]
Location 3: [331700. 92876. 112812.]
Checking current segmentation:
Target segment at center: 576460752681552812
Location 1: segment 576460752681552812 ✓
Location 2: segment 576460752718331166 ✗
Location 3: segment 576460752551830489 ✗
Attempting to snap all locations to segment: 576460752681552812
2 of 3 locations needed to be snapped.
Of these 0 locations could not be snapped - consider
increasing `search_radius`.
✓ After snapping: 3/3 on target segment
Movement statistics:
Successfully snapped: 2/3
Mean movement: 233.14 nm
Max movement: 382.08 nm
Min movement: 84.19 nm
💡 snap_to_id is useful for:
- Correcting manually annotated synapse locations
- Fixing coordinates from image registration
- Quality control of spatial annotations
9. Temporal Analysis: Edit History#
CAVE segmentation is versioned - you can see how neurons have changed over time.
Getting the Lineage Graph#
The lineage graph shows all the edits (merges/splits) that led to the current version of a neuron.
# Get lineage graph for a neuron
target_id = example_ids[0]
print(f"Getting edit history for root ID: {target_id}")
try:
G = cp.get_lineage_graph(target_id)
print(f"\nLineage graph statistics:")
print(f" Number of versions: {len(G.nodes())}")
print(f" Number of operations: {len(G.edges())}")
# Show the most recent versions
print(f"\nMost recent versions (node IDs):")
recent_nodes = list(G.nodes())[-5:] # Last 5 nodes
for node in recent_nodes:
print(f" {node}")
if 'operation_id' in G.nodes[node]:
print(f" Operation: {G.nodes[node]['operation_id']}")

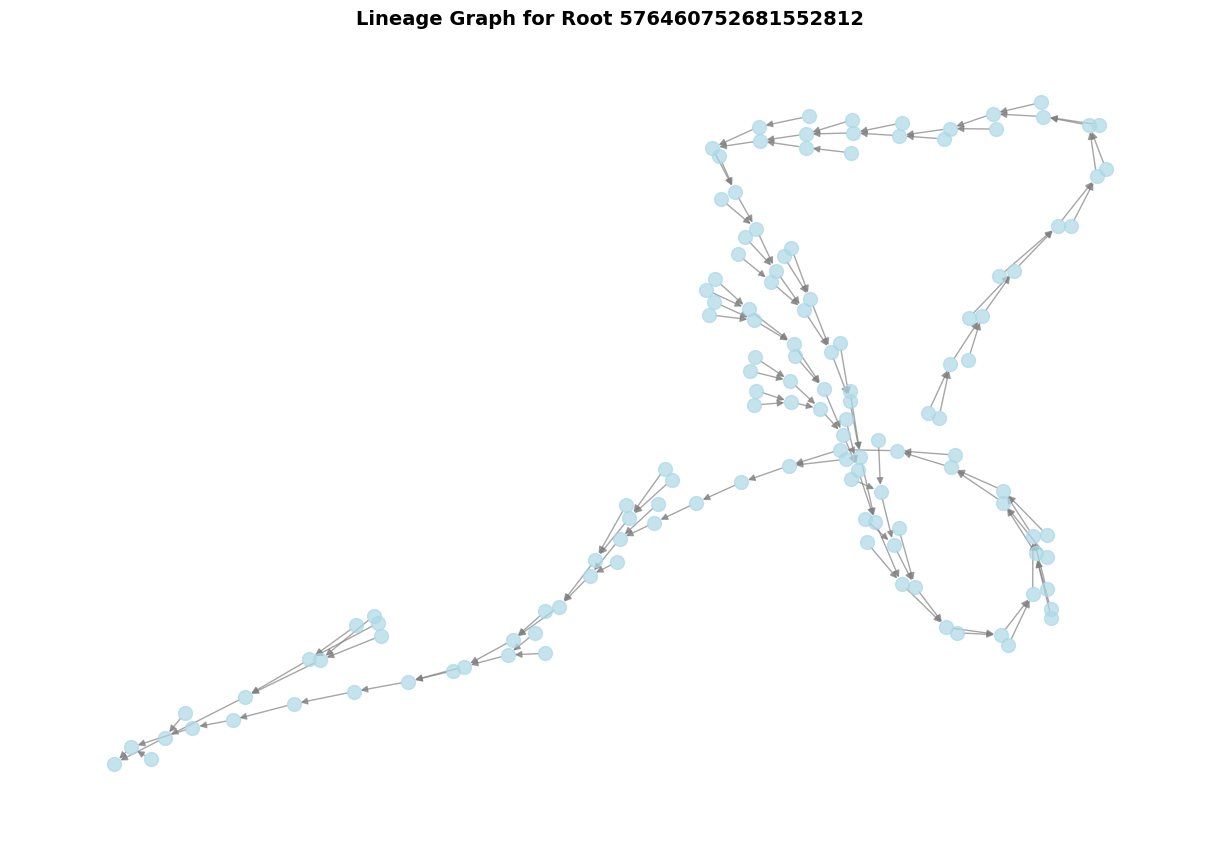

# Visualize the lineage graph
import networkx as nx
plt.figure(figsize=(12, 8))
pos = nx.spring_layout(G, k=1, iterations=1000)
nx.draw(G, pos,
node_color='lightblue',
node_size=100,
with_labels=False,
arrows=True,
edge_color='gray',
alpha=0.7)
plt.title(f'Lineage Graph for Root {target_id}', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()
except Exception as e:
print(f"\nNote: Lineage graph requires proofreading history: {e}")
Getting edit history for root ID: 576460752681552812
Lineage graph statistics:
Number of versions: 134
Number of operations: 133
Most recent versions (node IDs):
576460752759576858
576460752678850552
576460752681107663
Operation: 126
576460752726458923
576460752764825007
/var/folders/y6/xn2dyw2s14b79mrpmzrhykhc0000gn/T/ipykernel_46047/230392531.py:32: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
plt.tight_layout()
Finding Common Time Points#
If you’re analyzing multiple neurons, you might want to find a time when they all existed in a particular state.
# Find a time when multiple neurons co-existed
test_ids = example_ids[:3]
print(f"Finding common time for {len(test_ids)} neurons...")
try:
common_time = cp.find_common_time(test_ids)
print(f"\nCommon time found: {common_time}")
print(f" Date: {common_time.strftime('%Y-%m-%d')}")
print(f" Time: {common_time.strftime('%H:%M:%S')}")
# You can use this timestamp to query historical states
print("\nYou can now query the state of these neurons at this time:")
print(f" cp.locs_to_segments(locations, timestamp={int(common_time.timestamp())})")
except ValueError as e:
print(f"\nThese neurons never co-existed: {e}")
except Exception as e:
print(f"\nNote: {e}")
Finding common time for 3 neurons...
Common time found: 2025-09-01 15:02:36.196459+00:00
Date: 2025-09-01
Time: 15:02:36
You can now query the state of these neurons at this time:
cp.locs_to_segments(locations, timestamp=1756738956)
10. Practical Workflows#
Let’s combine these tools in some practical workflows.
Workflow 1: Validating and Updating a List of Neurons#
# Scenario: You have a list of neurons from an old analysis
old_neuron_list = example_ids[:10]
print(f"Working with {len(old_neuron_list)} neurons from previous analysis")
# Step 1: Check validity
print("\n1. Checking if IDs are valid...")
is_valid = cp.is_valid_root(old_neuron_list)
valid_ids = old_neuron_list[is_valid]
print(f" ✓ {np.sum(is_valid)}/{len(old_neuron_list)} are valid root IDs")
if len(valid_ids) < len(old_neuron_list):
print(f" ✗ {len(old_neuron_list) - len(valid_ids)} invalid IDs removed")
# Step 2: Check if up-to-date
print("\n2. Checking if IDs are current...")
is_latest = cp.is_latest_roots(valid_ids)
print(f" ✓ {np.sum(is_latest)}/{len(valid_ids)} are up-to-date")
# Step 3: Update outdated IDs
print("\n3. Updating outdated IDs...")
update_result = cp.update_ids(valid_ids, progress=False)
updated_ids = update_result['new_id'].values
# Step 4: Get supervoxels for stable tracking
print("\n4. Getting supervoxels for stable tracking...")
sv_dict = cp.roots_to_supervoxels(updated_ids[:3], progress=False) # Just first 3 for demo
print(f" ✓ Stored {len(sv_dict)} neurons with their supervoxels")
# Step 5: Save results
result_df = pd.DataFrame({
'old_id': update_result['old_id'],
'new_id': update_result['new_id'],
'changed': update_result['changed'],
'confidence': update_result['confidence']
})
print("\n5. Final results:")
display(result_df.head(10))
print(f"\nSummary: {result_df['changed'].sum()} neurons were updated")
Working with 3 neurons from previous analysis
1. Checking if IDs are valid...
✓ 3/3 are valid root IDs
2. Checking if IDs are current...
✓ 3/3 are up-to-date
3. Updating outdated IDs...
2025-10-04 16:13:09 - WARNING - Multiple supervoxel IDs found for 130 root IDs. Using first occurrence for each.
4. Getting supervoxels for stable tracking...
✓ Stored 3 neurons with their supervoxels
5. Final results:
| old_id | new_id | changed | confidence | |
|---|---|---|---|---|
| 0 | 576460752681552812 | 576460752681552812 | False | 1.0 |
| 1 | 576460752773799604 | 576460752773799604 | False | 1.0 |
| 2 | 576460752656800770 | 576460752656800770 | False | 1.0 |
Summary: 0 neurons were updated
Workflow 2: Quality Control for Synapse Annotations#
# Scenario: You have synapse locations and want to verify they're on the right neurons
# Get the actual segment at center_location (which we know has coverage)
target_neuron = cp.locs_to_segments([center_location], coordinates="nm")[0]
print(f"Target neuron at center location: {target_neuron}")
# Simulated synapse locations (in practice, these come from your data)
synapse_locations = np.array([
center_location + np.array([-300, -300, 0]),
center_location + np.array([-300, 300, 0]),
center_location + np.array([300, -300, 0]),
center_location + np.array([300, 300, 0]),
center_location + np.array([0, 0, 0])
], dtype=float)
print(f"\nQuality control for {len(synapse_locations)} synapses on neuron {target_neuron}")
# Step 1: Check which neurons these locations currently hit
print("\n1. Checking current segmentation at synapse locations...")
current_roots = cp.locs_to_segments(synapse_locations, coordinates="nm")
matches = current_roots == target_neuron
print(f" {np.sum(matches)}/{len(synapse_locations)} synapses on correct neuron")
# Step 2: Snap misaligned synapses
if not np.all(matches):
print("\n2. Correcting misaligned synapses...")
corrected_locs = cp.snap_to_id(
synapse_locations,
id=target_neuron,
search_radius=500,
coordinates="nm",
verbose=False
)
# Verify corrections
corrected_roots = cp.locs_to_segments(corrected_locs, coordinates="nm")
corrected_matches = corrected_roots == target_neuron
print(f" ✓ {np.sum(corrected_matches)}/{len(synapse_locations)} now on correct neuron")
# Calculate movement - ensure proper float arrays
movement = np.linalg.norm(
np.asarray(corrected_locs, dtype=float) - np.asarray(synapse_locations, dtype=float),
axis=1
)
print(f"\n3. Movement statistics:")
print(f" Mean: {np.mean(movement):.2f} nm")
print(f" Max: {np.max(movement):.2f} nm")
# Create results DataFrame
synapse_qc = pd.DataFrame({
'synapse_id': range(len(synapse_locations)),
'original_x': synapse_locations[:, 0],
'original_y': synapse_locations[:, 1],
'original_z': synapse_locations[:, 2],
'corrected_x': corrected_locs[:, 0],
'corrected_y': corrected_locs[:, 1],
'corrected_z': corrected_locs[:, 2],
'movement_nm': movement,
'original_match': matches,
'corrected_match': corrected_matches
})
print("\n4. QC results:")
display(synapse_qc)
else:
print("\n✓ All synapses already on correct neuron!")
Target neuron at center location: 576460752681552812
Quality control for 5 synapses on neuron 576460752681552812
1. Checking current segmentation at synapse locations...
3/5 synapses on correct neuron
2. Correcting misaligned synapses...
✓ 5/5 now on correct neuron
3. Movement statistics:
Mean: 37.95 nm
Max: 129.63 nm
4. QC results:
| synapse_id | original_x | original_y | original_z | corrected_x | corrected_y | corrected_z | movement_nm | original_match | corrected_match | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 330900.0 | 93076.0 | 112812.0 | 330912.0 | 93104.0 | 112938.0 | 129.630243 | False | True |
| 1 | 1 | 330900.0 | 93676.0 | 112812.0 | 330896.0 | 93616.0 | 112812.0 | 60.133186 | False | True |
| 2 | 2 | 331500.0 | 93076.0 | 112812.0 | 331500.0 | 93076.0 | 112812.0 | 0.000000 | True | True |
| 3 | 3 | 331500.0 | 93676.0 | 112812.0 | 331500.0 | 93676.0 | 112812.0 | 0.000000 | True | True |
| 4 | 4 | 331200.0 | 93376.0 | 112812.0 | 331200.0 | 93376.0 | 112812.0 | 0.000000 | True | True |
Workflow 3: Analyzing Segmentation in a Region#
# Scenario: Analyze all neurons in a specific brain region
region_bbox = np.array([
[center_location[0] - 2000, center_location[0] + 2000],
[center_location[1] - 2000, center_location[1] + 2000],
[center_location[2] - 100, center_location[2] + 100]
])
print(f"Analyzing segmentation in region:")
print(f" X: {region_bbox[0]}")
print(f" Y: {region_bbox[1]}")
print(f" Z: {region_bbox[2]}")
# Step 1: Get segmentation cutout
print("\n1. Fetching segmentation cutout...")
cutout, resolution, offset = cp.get_segmentation_cutout(
region_bbox,
root_ids=True,
mip=1,
coordinates="nm"
)
print(f" ✓ Cutout shape: {cutout.shape}")
# Step 2: Find all neurons in this region
unique_roots = np.unique(cutout)
unique_roots = unique_roots[unique_roots != 0]
print(f"\n2. Found {len(unique_roots)} neurons in region")
# Step 3: Get annotations for these neurons
if len(unique_roots) > 0 and len(unique_roots) <= 500: # Limit to reasonable number
print("\n3. Fetching neuron annotations...")
region_annotations = cp.get_annotations(unique_roots).groupby('root_id').first().reset_index()
# annotations may not be available for all neurons
print(f" ✓ Retrieved annotations for {len(region_annotations)}/{len(unique_roots)} neurons")
# fill in missing annotations
region_annotations = region_annotations[['root_id', 'cell_class', 'cell_type', 'side']]
region_annotations.fillna('Unknown', inplace=True)
# convert root_id to int for consistency
region_annotations['root_id'] = region_annotations['root_id'].astype(np.uint64)
# add neurons without annotations
missing_ids = set(unique_roots) - set(region_annotations['root_id'])
if missing_ids:
missing_df = pd.DataFrame({'root_id': list(missing_ids), 'cell_class': 'Unknown', 'cell_type': 'Unknown', 'side': 'Unknown'})
region_annotations = pd.concat([region_annotations, missing_df], ignore_index=True)
print(f" ✗ {len(missing_ids)} neurons without annotations added as 'Unknown'")
# Analyze cell classes
print("\n4. Cell class distribution:")
cell_class_counts = region_annotations['cell_class'].value_counts()
print(cell_class_counts)
# Visualize

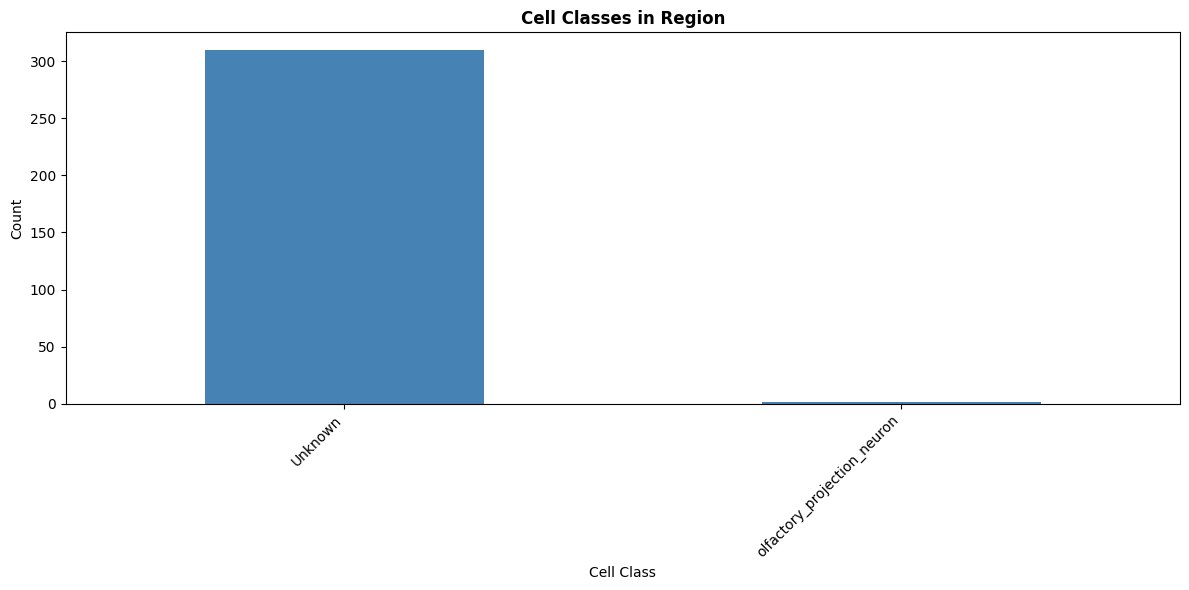

plt.figure(figsize=(12, 6))
cell_class_counts.plot(kind='bar', color='steelblue')
plt.title('Cell Classes in Region', fontsize=12, fontweight='bold')
plt.xlabel('Cell Class')
plt.ylabel('Count')
plt.xticks(rotation=45, ha='right')
plt.tight_layout()
plt.show()
# Calculate volume occupied by each neuron
print("\n5. Volume analysis:")
for root_id in unique_roots[:5]: # Just first 5
voxel_count = np.sum(cutout == root_id)
volume_nm3 = voxel_count * np.prod(resolution)
volume_um3 = volume_nm3 / 1e9
print(f" Root {root_id}: {voxel_count} voxels = {volume_um3:.2f} µm³")
else:
print(f"\nNote: Too many neurons ({len(unique_roots)}) for detailed analysis")
Analyzing segmentation in region:
X: [329200. 333200.]
Y: [91376. 95376.]
Z: [112712. 112912.]
1. Fetching segmentation cutout...
✓ Cutout shape: (124, 124, 4)
2. Found 311 neurons in region
3. Fetching neuron annotations...
✓ Retrieved annotations for 15/311 neurons
✗ 296 neurons without annotations added as 'Unknown'
4. Cell class distribution:
cell_class
Unknown 310
olfactory_projection_neuron 1
Name: count, dtype: int64
5. Volume analysis:
Root 576460752499537597: 38 voxels = 0.00 µm³
Root 576460752502187549: 36 voxels = 0.00 µm³
Root 576460752502203933: 378 voxels = 0.02 µm³
Root 576460752502220317: 55 voxels = 0.00 µm³
Root 576460752502236445: 423 voxels = 0.02 µm³
11. Performance Tips and Best Practices#
Tip 1: Cache Supervoxels for Faster Updates#
Supervoxels never change, so caching them enables instant ID updates.
import time
neurons_to_track = cp.NeuronCriteria(cell_class='olfactory_projection_neuron', proofread=True).get_roots()[:20]
# Slow: Update without supervoxels
start = time.time()
result_slow = cp.update_ids(neurons_to_track, use_annotations=False, progress=False)
time_slow = time.time() - start
print(f"Update without supervoxels: {time_slow:.2f}s")
# Fast: Get and cache supervoxels once
print("\nCaching supervoxels...")
sv_cache = cp.roots_to_supervoxels(neurons_to_track, progress=False)
# Now use them for updates
start = time.time()
supervoxels_list = [sv_cache[int(rid)][0] for rid in neurons_to_track] # Use first supervoxel
result_fast = cp.update_ids(neurons_to_track, supervoxels=supervoxels_list, progress=False)
time_fast = time.time() - start
print(f"Update with supervoxels: {time_fast:.2f}s")
print(f"\nSpeedup: {time_slow/time_fast:.1f}x faster with supervoxels!")
Update without supervoxels: 0.18s
Caching supervoxels...
Update with supervoxels: 0.18s
Speedup: 1.0x faster with supervoxels!
Tip 2: Use Appropriate MIP Levels#
Higher MIP = lower resolution = faster queries.
# For different use cases, choose appropriate resolution:
print("Recommended MIP levels:")
print(" mip=0 (highest res): Precise synapse locations, detailed tracing")
print(" mip=1 (lowest res): General morphology, large structures")
# Example: Compare query times
test_bbox = np.array([
[center_location[0] - 2000, center_location[0] + 2000],
[center_location[1] - 2000, center_location[1] + 2000],
[center_location[2] - 100, center_location[2] + 100]
])
for mip in [0, 1]:
start = time.time()
cutout, _, _ = cp.get_segmentation_cutout(test_bbox, mip=mip, coordinates="nm")
elapsed = time.time() - start
print(f"\nmip={mip}: {cutout.shape} in {elapsed:.2f}s")
Recommended MIP levels:
mip=0 (highest res): Precise synapse locations, detailed tracing
mip=1 (lowest res): General morphology, large structures
mip=0: (250, 250, 4) in 2.01s
mip=1: (124, 124, 4) in 1.16s
Tip 3: Batch Operations#
Always process multiple coordinates/IDs in a single call.
# Generate test data
n_locations = 100
test_locations = np.random.randint(
low=[center_location[0]-5000, center_location[1]-5000, center_location[2]-500],
high=[center_location[0]+5000, center_location[1]+5000, center_location[2]+500],
size=(n_locations, 3)
)
# Bad: Loop over locations
start = time.time()
results_slow = []
for loc in test_locations[:10]: # Just 10 for demo
result = cp.locs_to_segments([loc], coordinates="nm", progress=False)
results_slow.append(result[0])
time_slow = time.time() - start
print(f"Loop approach (10 locations): {time_slow:.2f}s")
# Good: Batch processing
start = time.time()
results_fast = cp.locs_to_segments(test_locations[:10], coordinates="nm", progress=False)
time_fast = time.time() - start
print(f"Batch approach (10 locations): {time_fast:.2f}s")
print(f"\nSpeedup: {time_slow/time_fast:.1f}x faster with batching!")
print("\n💡 Always use batch operations for multiple queries!")
Loop approach (10 locations): 10.00s
Batch approach (10 locations): 9.71s
Speedup: 1.0x faster with batching!
💡 Always use batch operations for multiple queries!
Summary#
In this comprehensive deep dive, you learned:
✅ Hierarchical segmentation - Root IDs, L2 chunks, and supervoxels
✅ Bidirectional conversions - Between roots and supervoxels
✅ Location-based queries - Finding segments at specific coordinates
✅ ID management - Validating and updating root IDs
✅ Neuron mapping - Connecting spatial reconstructions to segmentation
✅ Volume operations - Extracting segmentation cutouts
✅ Voxel-level data - Working with individual voxels
✅ Coordinate correction - Snapping locations to correct segments
✅ Temporal analysis - Understanding edit history and lineage
✅ Practical workflows - Real-world analysis pipelines
✅ Performance optimization - Tips for efficient queries
Key Takeaways#
Supervoxels are stable - Cache them for reliable tracking across edits
Root IDs can change - Always validate and update old IDs
Use appropriate resolution - Balance speed vs. precision with MIP levels
Batch operations - Process multiple items together for better performance
Location-based queries - Essential for connecting spatial data to segmentation
Temporal awareness - Segmentation is versioned; use timestamps when needed
Coordinate systems matter - CAVE uses nanometers, CloudVolume uses voxels
CloudVolume has limits - Limited spatial coverage and resolution; use L2 skeletons/meshes for full neurons
Common Use Cases#
Synapse analysis: Use locs_to_segments + snap_to_id for quality control
Neuron tracking: Use roots_to_supervoxels + update_ids for stable IDs
Region analysis: Use get_segmentation_cutout for local connectivity
Quality control: Use neuron_to_segments to validate reconstructions
Historical analysis: Use get_lineage_graph + find_common_time for temporal studies
Voxel operations: Use get_voxels with explicit bounds for small regions
Important Notes on Voxel Operations#
When working with voxel-level data (get_voxels, get_segmentation_cutout):
CloudVolume covers only a subset of the full dataset (~360 µm cube)
Always specify explicit bounds to avoid coverage errors
Use small regions (< 10 µm) for best performance
For complete neuron morphology, use
get_l2_skeletonorget_meshinstead
